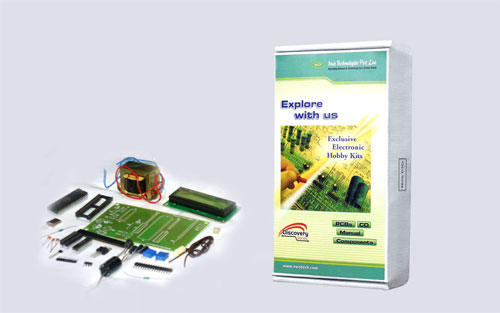

Advanced Level Magnetic Field Indicator
Nvis 17D
Product Description
This is Microcontroller based magnetic field indicator. Magnetic field is displayed on LCD in Gauss. This project has been designed using Hall effect sensor and Microcontroller, ADC and few discrete components. Hall effect sensor is heart of this circuit.
Product Features
- Magnetic Field indication upon LCD in Gauss unit.
- Safe and easy to perform.
- Descriptive operating manual with procedure.
- Circuit diagram with PCB Layout for better understanding.
