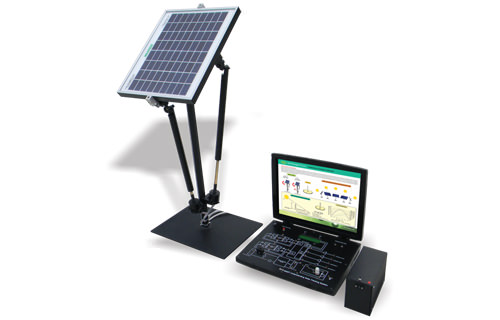

Experimenting with Solar Tracking System
Nvis 6019
Product Description
Nvis 6019 Understanding Solar Tracking System is a versatile training system for study and demonstration of Solar tracking. Solar tracker is a device which tracks the motion of the Sun, thus ensuring that the maximum amount of Sunlight strikes the panels throughout the day.
Product Features
- Complete training system to study the fundamentals of Solar Tracking
- Microcontroller based Tracking System
- Single-axis and Dual-axis Tracking
- Manual, Time and Auto Modes of operation in Single-axis Solar Tracking
- Manual mode of operation in Dual-axis Solar Tracking
- Master Reset Switch for recovery of System
- Emergency Motor Stop Switches
- Tilt Sensors for sensing angle of panel with respect to horizontal plane
- Facility for charging battery using Solar energy as well as DC supply
Technical Specification
| Supply Voltage | 12V DC |
| Solar Panel | |
| Maximum Output Power (Pm) | 18W |
| Open Circuit Voltage (Voc) | 21V DC |
| Short Circuit Current (Isc) | 1.07A |
| Maximum Output Voltage (Vmp) | 17V |
| Maximum Current (Im) | 1.06A |
| DC Motor | 12V |
| Rechargeable Battery | 12V, 7Ah |
| Display | 20 x 4 LCD |
| Light Sensor | Phototransistor |
| Acceleration/Vibration/Tilt Sensor � 3 Axis | +5V @ 1ma current |
| Fuse | 1Amp (3 Nos.) |
| DC Adaptor | 12V @ 1Amp |
| Dimension (mm) | W 350 x D 280 x H 55 |
