Product Description

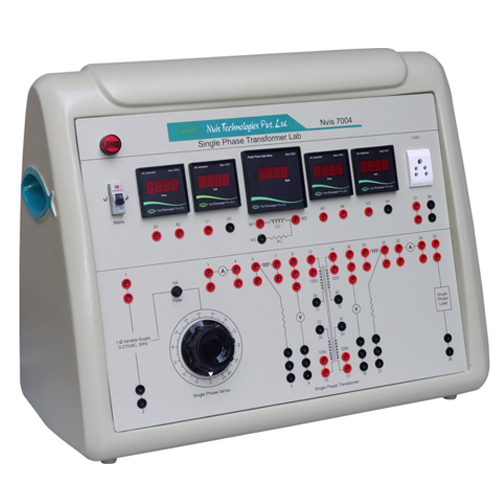

Nvis 7004 Single Phase Transformer Lab is an elite training system for the Electrical laboratories. The product
helps you to get fully acquainted with the basic concepts and functioning of a Single Phase Transformer.
The product is represented in such an easy way that each test can be studied differently in proper sequence. The
Lab practically expertises you in exercises like Polarity, Turns Ratio, Transformation Ratio, Iron Loss, Copper Loss, Efficiency etc. The vast scope of learning makes the subject easily and completely understandable.

Product Features

• Inbuilt Single Phase Variac
• Equipped with Supply Indication Lamp
• Facility to use Fixed and Variable Load
• Control board consist of high grade FRP material to provide utmost safety to the users
• Terminals provided to use the optional externally
• Designed by considering all the safety standards
• Diagrammatic representation for the ease of connections
• Flexibility to configure Step-up, Step-down and Isolation Transformer
• Exclusive and Compact Design

Scope of Learning
